Horlacher SAXI, 1993
spacer
spacer




Zurück | Weiter | Prototypen Übersicht

Entwickelt für:       Swiss Federal Office of Energy, Trapos AG (Germany)
In Zusammenarbeit mit:  Trapos AG
Design:        Max Horlacher

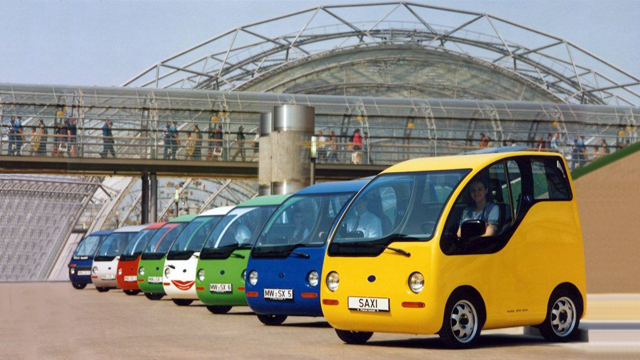

Saxikurier

The Horlacher Saxikurier is a specially developed short range vehicle which serves to transprt persons or goods in cities and suburbs or which can be used for general short distance applivcations.

Because of its small dimensions and its manoeuvrability parking is made extremely easy; it is even possible to park straight to the curb.

Its interior height of 165cm as well as its large two part rear door allow comfortable access and makes it suitable for persons with wheel chairs.

The present version has been designed for one driver and four passengers, the modular body design however offering the possibility to be extended and to carry up to eight persons.

Pure electric but also hybrid-electric are the drivetrain options which can be adapted to the specific requirements of the operator.
The present Saxikurier prototype is powered by an electric drivetrain and is presently used for test and presentation purposes.
The development of the Saxikurier has been funded by the Swiss Federal Office of Energy.


Technische Daten

Dimensionen / Spezifikationen

Länge: 230 cm
Breite: 150 cm
Höhe: 190 cm
Felgen: 4 x 14"
Karosserie: Faserverstärkte Kunststoffe
Gewicht: 600 - 800 kg (abhängig von Batteriekonfiguration)
Zuladung: 400 kg


Batterien, Antrieb, Fahr-Daten

Batterien: 8 - 12 flooded lead acid batteries
Antrieb  (Vorderradantrieb): BRUSA AMC 300, gt-20 Asynchron-Motor, max. Leistung: 21 kW
Verbrauch*: 12 - 18 kWh / 100 km (Batterieverbrauch)
Spitzengeschwindigkeit: 80 km/h


Das Projekt Saxi wird vom schweizerischen Bundesamt für Energiewirtschaft (BFE) unterstützt.
